Question 1

I'm new to microcontrollers. Is this camera module beginner-friendly?**

Accepted Answer

We recommend this module primarily for intermediate to advanced hobbyists, electronics students, or those specifically seeking a deep-dive learning project. While it's a fantastic low-cost educational tool, many beginners on forums like Reddit have expressed frustration with the need for additional components (like resistors for pull-ups) and the technical challenge of configuring it via I2C registers. If you're looking for a simpler "plug-and-play" camera for Arduino, you might want to research modules with built-in JPEG compression like the OV2640 first.

Question 2

What else do I need to buy to get this working with my Arduino Uno?**

Accepted Answer

The module itself is just the sensor board. To connect it to a 5V Arduino Uno, you will likely need: 1) A **3.3V voltage regulator** or dedicated power source, as the OV7670 is a 3.3V device. 2) **10K ohm resistors** to act as pull-ups on the I2C lines (SCCB). 3) **Jumper wires**. A common tip from successful users is to also get a **small breadboard** for easier connections. It does not come with a ribbon cable or any mounting hardware.

Question 3

How is the image quality and can I adjust the focus?**

Accepted Answer

This is a basic VGA (640x480) sensor. Users report it provides a functional image for machine vision or basic monitoring projects, but it can be grainy in lower light. Please note: **The lens has a fixed focus**, set for distances of roughly 1 meter to infinity. As noted in several YouTube reviews, this makes it less ideal for close-up object detection. The field of view is a standard 25 degrees.

Question 4

Is it compatible with the latest Arduino boards like the UNO R4 or ESP32?**

Accepted Answer

The sensor is compatible in principle, but the main challenge is software library support. For the UNO R4 (which uses a Renesas chip), many older OV7670 libraries designed for AVR-based boards (like the UNO R3) may not compile directly. For ESP32, you'll need libraries tailored for its dual-core architecture. We advise checking dedicated GitHub repositories and community forums for your specific board *before* purchasing, as you may need to adapt existing code.

Question 5

I'm concerned about receiving a damaged module. How is it packaged?**

Accepted Answer

This is a valid concern we've seen echoed in user feedback. These are low-cost, industrial-style modules and have historically been shipped in minimal anti-static packaging. While we inspect all units, the postal process can sometimes bend the delicate pins. We double-check every module before dispatch and are committed to resolving any DOA (Dead On Arrival) issues. If you receive a damaged unit, please contact our after-sales service with photos for a prompt replacement or refund.

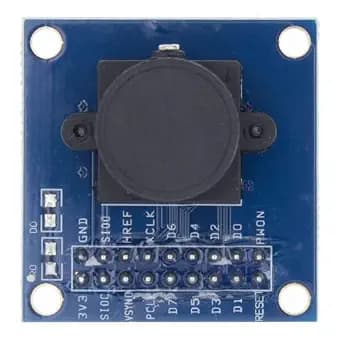

OV7670 VGA CMOS Camera Module 640x480 0.3MP Video Capture Board with I2C Interface 25° FOV Compatible with UNO Rduino ARM STM32 FPGA DIY Electronics Robotics Projects
